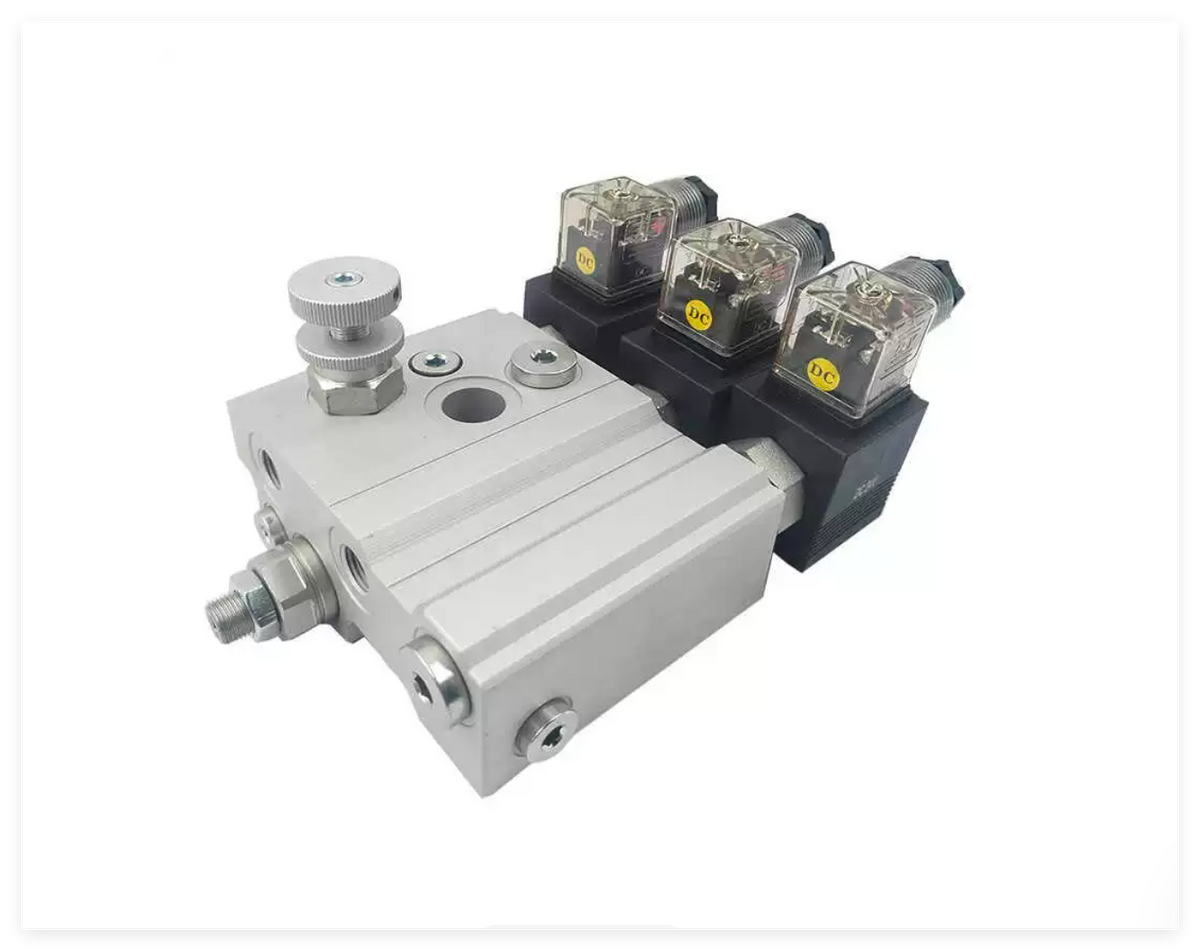

Hydraulic Center Manifold Valve Block Assembly with 3 Solenoid Valves for Truck Tail Lifts & Power Units

The Universal Hydraulic Center Manifold Valve Block Assembly with 3 Solenoid Cartridge Valves is a high-precision, heavy-duty electro-hydraulic control manifold engineered for commercial truck tail lifts, vehicle hydraulic ramps, dump trailers, scissor lifts, and industrial DC hydraulic power packs. Widely compatible with Cadrolift (凯卓立), Niuli, and universal multi-brand commercial truck tailboard systems, this integrated aluminum block consolidates directional lifting/lowering/tilting control, adjustable flow throttling, and maximum system pressure protection into a compact, leak-free design.

Key Features & Specifications

• Universal Truck Tail Lift Compatibility: Universal fit for commercial truck tail lifts, vehicle electro-hydraulic power units, and liftgate systems across major vehicle brands.
• Triple Solenoid Cartridge Valves: Equipped with 3 high-response electromagnetic directional cartridge valves (with transparent Hirschmann-style illuminated DIN connectors, DC coils) to independently control lift, lower, and tilt functions.
• Integrated Flow Control Throttle Valve: Features an ergonomic knurled manual adjustment knob on top for smooth, precise lowering speed calibration and shock prevention.
• Adjustable Pressure Relief Valve: Built-in adjustable pilot-operated safety relief valve with lock-nut ensures the hydraulic power unit does not exceed maximum rated working pressure.
• CNC-Machined Aluminum Manifold: Premium extruded aerospace-grade aluminum block provides exceptional structural rigidity, burst resistance, and efficient thermal dissipation.
• Universal Power Pack Mounting: Standardized flange bolt holes and internal P/T/A/B hydraulic flow channels for direct mounting to mobile 12V/24V DC tailboard pump units.

Technical Data & Dimensions

• Product Name: Universal Hydraulic Center Manifold Valve Block Assembly
• Application: Commercial Trucks, Vehicle Tail Lifts, Liftgates, Dump Trailers, Scissor Lifts
• Valve Configuration: 3 Solenoid Cartridge Valves + 1 Throttle Regulating Knob + 1 Main Relief Valve
• Operating Coils: DC Solenoids with LED Indicator Plugs
• Net Weight: Approx. 3.0 kg – 3.2 kg (Shipping weight approx. 3.5 kg)
• Part SKU: HPU-VB-3V-298

Packaging & Worldwide Dispatch

Cleaned, lubricated, and sealed with dust-proof thread plugs. Packed in shock-absorbent custom export foam and heavy-duty corrugated carton. Dispatched worldwide within 3–7 business days via UPS, FedEx, or DHL express couriers.

For custom coil voltages (12V DC / 24V DC), hydraulic schematic verification, or bulk quantity quotations, contact our engineering team at inquiry@electrical-online-store.com.
