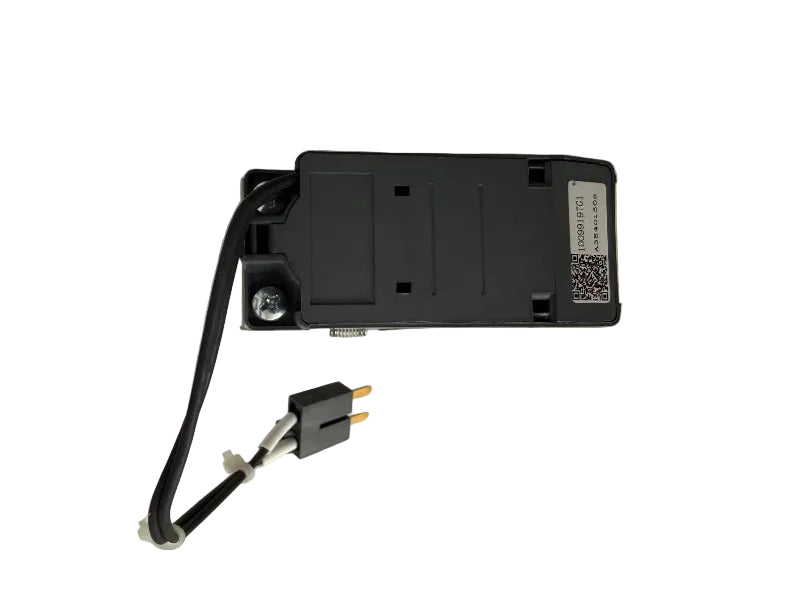

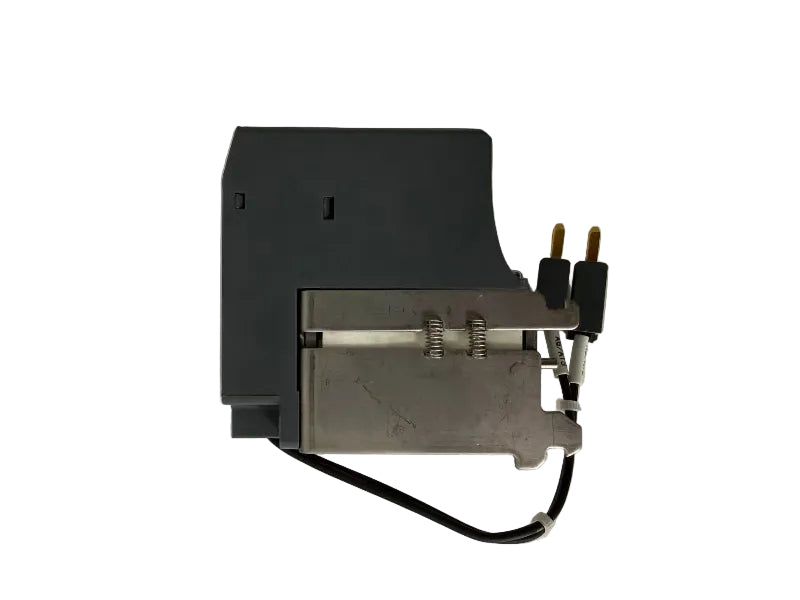

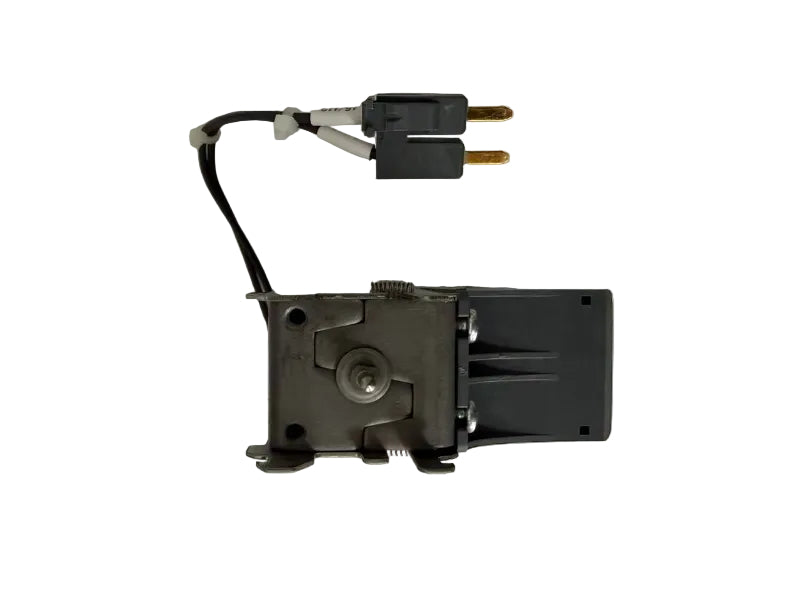

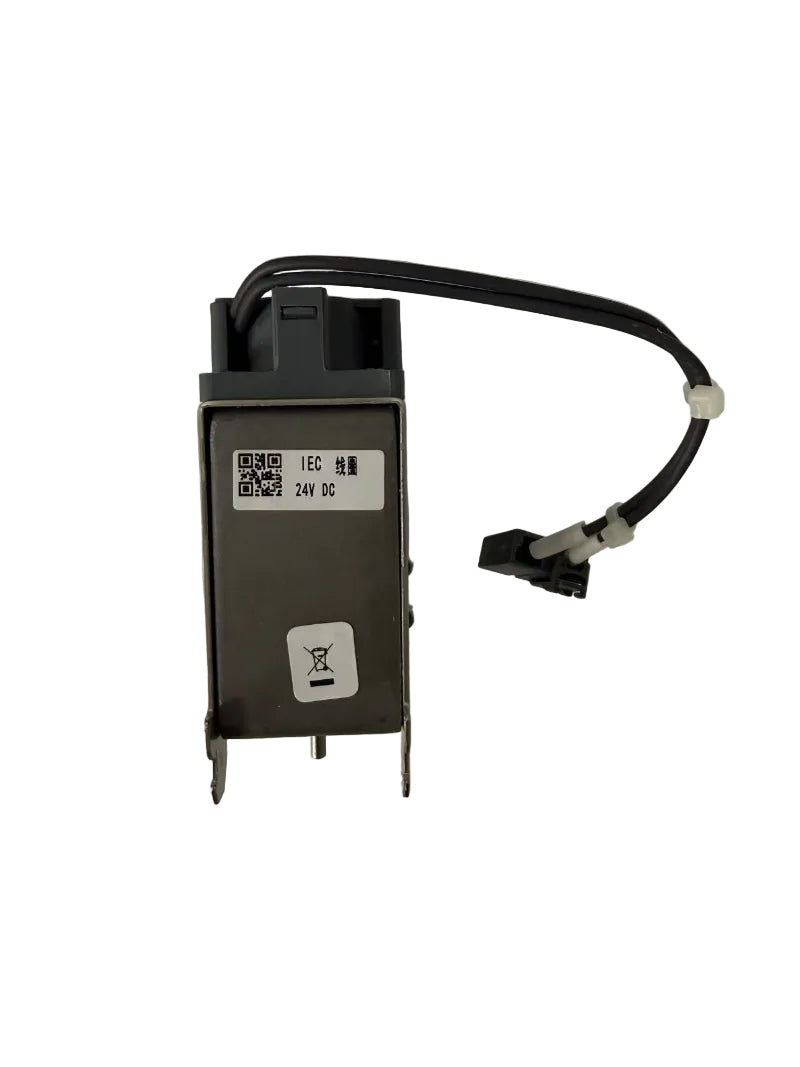

Shunt Trip Coil (24V/48V/220V) for GE EntelliGuard G Air Circuit Breaker
Shunt Trip Coil (24V/48V/220V) for GE EntelliGuard G Air Circuit Breaker
The Shunt Trip Coil (24V/48V/220V) for GE EntelliGuard G Air Circuit Breaker is an authentic OEM electrical accessory engineered specifically for GE EntelliGuard G series low-voltage air circuit breakers (ACB). Available in 24V DC, 48V DC, and 220V–240V AC/DC control voltage options, this heavy-duty solenoid release provides instantaneous remote tripping and emergency circuit disconnection for critical power switchboards.
Key Features & Specifications
- Fast Remote Tripping: Provides instantaneous mechanical unlatching upon application of the specified control voltage pulse.
- Multiple Voltage Configurations: Available in 24V DC, 48V DC, and universal 220V–240V AC/DC to integrate directly with any substation DC battery bank or AC control bus.
- Direct OEM Fit: Factory mounting brackets and pre-terminated wiring harness for rapid drop-in installation on GE EntelliGuard G breaker frames.

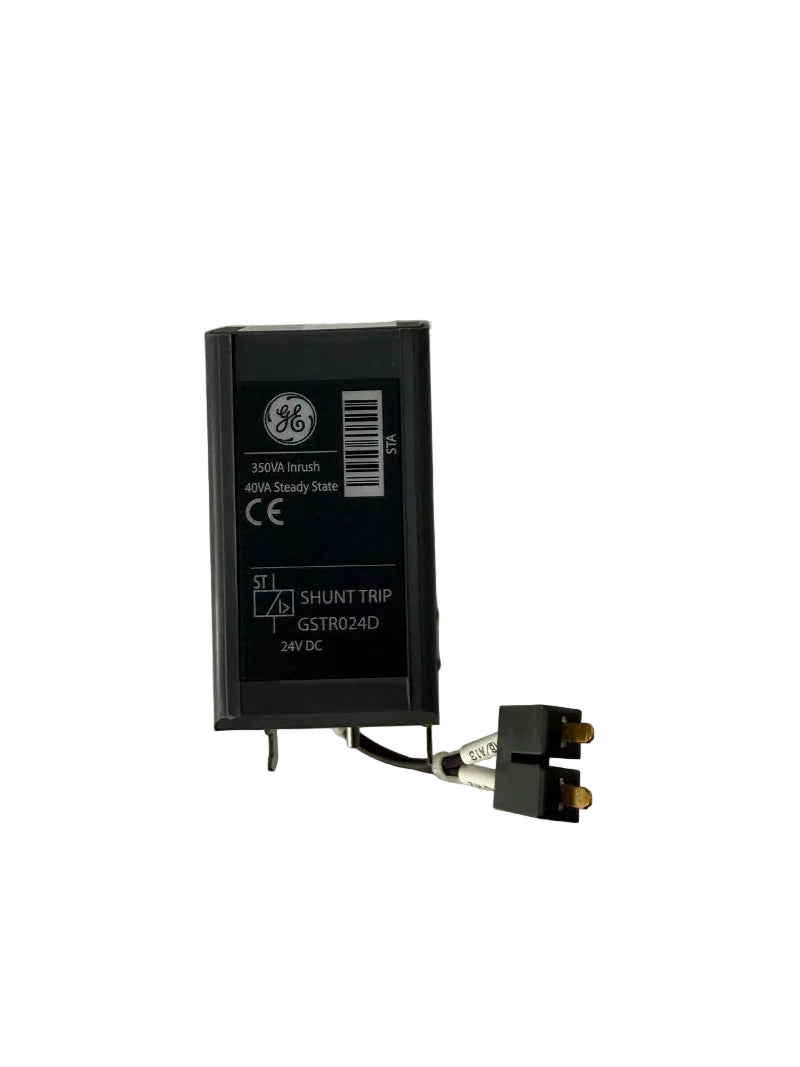

- High Reliability: Rugged solenoid construction tested for continuous industrial standby readiness and dependable interruption (350VA inrush, 40VA steady state).
Voltage Options & Part Number Reference
| Voltage Option | Control Supply Type | Catalog / Model No. | Part Code |
|---|---|---|---|
| 24V DC | Direct Current (DC) 24V | GSTR024D (STA) | GE-EG-ST-24V |
| 48V DC | Direct Current (DC) 48V | GSTR048D (STA) | GE-EG-ST-48V |
| 220V AC/DC | 220V–240V AC / DC (50/60Hz) | GSTR240 (STA) | GE-EG-ST-220V |
Packaging & Worldwide Dispatch
Packed in robust industrial anti-shock packaging. Dispatched within 3–7 business days via reliable international express couriers (UPS, FedEx, DHL).
For technical inquiries or compatibility confirmation, please reach out to our engineering support at inquiry@electrical-online-store.com.
