Automobile Tailboard DC Motor (12V 2.0kW / 24V 2.2kW) for Cadrolift Truck Tail Lifts

The Automobile Tailboard DC Motor (12V 2.0kW / 24V 2.2kW) is a heavy-duty, high-torque industrial DC electric motor engineered specifically and exclusively for Cadrolift (凯卓立) commercial truck tail lifts and electro-hydraulic pump units. Matching Cadrolift OEM mounting dimensions, drive coupling, and wiring specifications, this motor features reinforced magnetic stator poles, pure copper rotor windings, heavy-duty carbon brush assemblies, and IP67 weather-resistant seals to deliver reliable high-pressure lifting performance for Cadrolift tailboard power stations.

Key Features & Specifications

• Engineered Exclusively for Cadrolift: Direct OEM-fit replacement motor tailored specifically for Cadrolift (凯卓立) truck tail lift power units.
• Dedicated Voltage & Power Options:

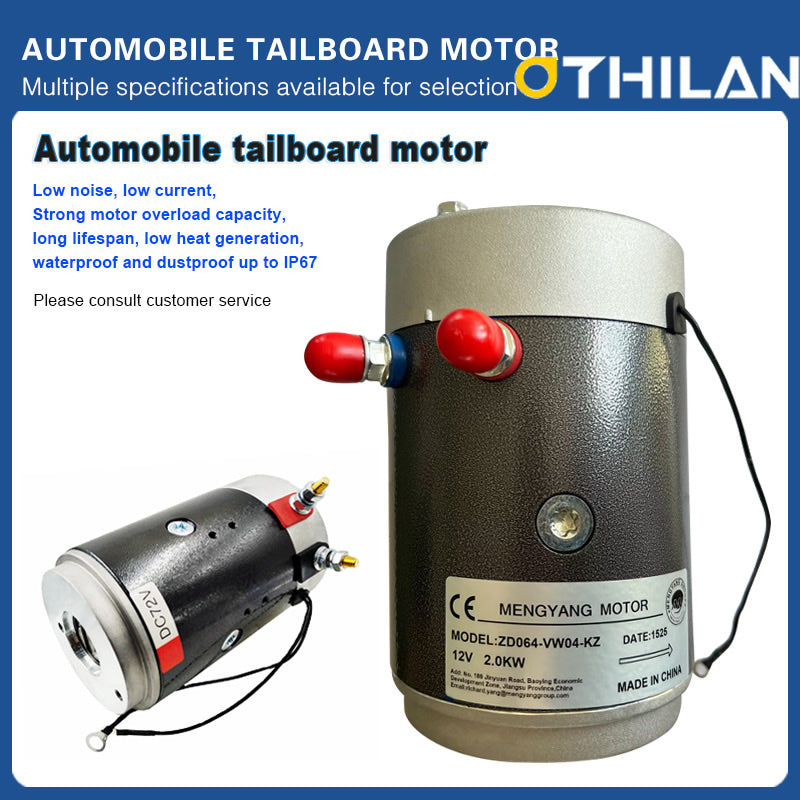

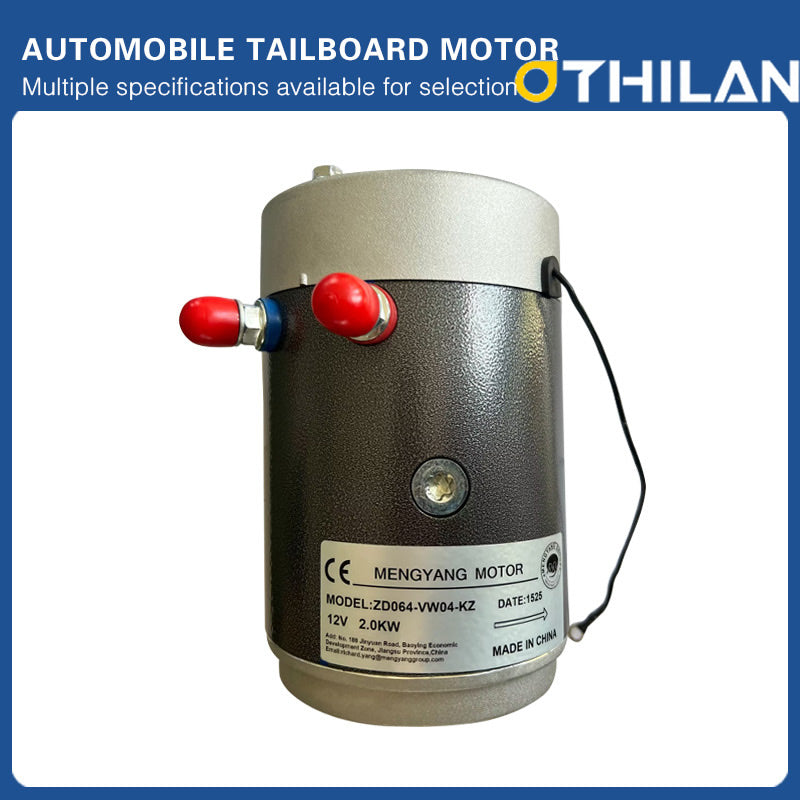

  • 12V DC, 2.0 kW (Model: ZD064-VW04-KZ): Dedicated Cadrolift motor for 12V light and medium commercial vehicles.

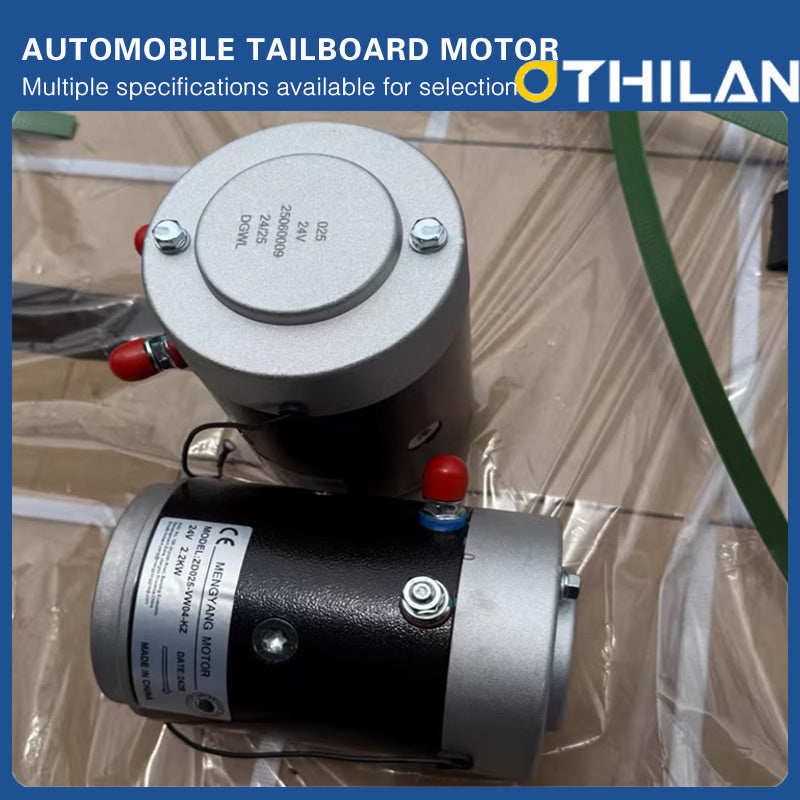

  • 24V DC, 2.2 kW (Model: ZD025-VW04-KZ / ZD026): Dedicated Cadrolift motor for 24V heavy-duty commercial freight trucks.
• High Overload & High Starting Torque: Robust starting torque provides rapid hydraulic pressure buildup and smooth platform elevation even under maximum rated capacity.
• Low Noise & Low Current Draw: Optimized electromagnetic circuit design reduces electromagnetic interference, current peaks, and operating decibels.
• IP67 Weatherproof & Dustproof: High-integrity end bell O-ring sealing protects internal commutator and brushes from rain, road wash, and industrial contamination.
• Heavy-Duty Terminal Posts: Color-coded insulated protective boots (Red/Blue) on heavy brass terminal studs for reliable high-amperage electrical connection.

Technical Data & Specifications Matrix

Packaging & Worldwide Dispatch

Each motor is individually tested for insulation resistance and rotation before being packaged in shock-proof custom foam and heavy export corrugated carton. Dispatched worldwide within 3–7 business days via international couriers (UPS, FedEx, DHL).

For technical inquiries, Cadrolift model compatibility, or fleet wholesale inquiries, contact our engineering team at inquiry@electrical-online-store.com.
